Construction Equipment Earthwork & Soil Compaction

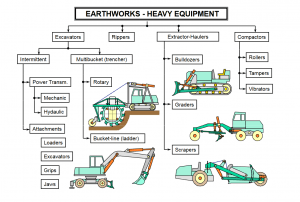

earthworks heavy equipment 300x202 - Construction Equipment Earthwork & Soil Compaction

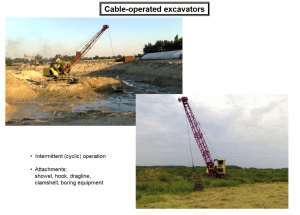

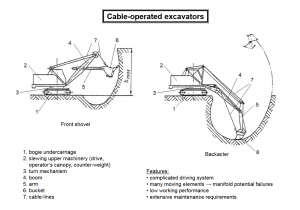

1.Cable Excavator

Cable excavators are large earthmoving machines used for heavy excavation of materials with the use of cables or wire ropes. Almost obsolete, cable excavators were once used in mining and some construction applications and usually consisted of a variety of attachments that could transform it into a backhoe, skimmer, dragline, and more. Aside from a few companies that still manufacture them, cable excavators have been replaced by hydraulic excavators due to their cheaper costs, easier operation and faster mobility.

cable operated excavators 300x210 - Construction Equipment Earthwork & Soil Compactioncable operated excavators 2 300x215 - Construction Equipment Earthwork & Soil Compaction

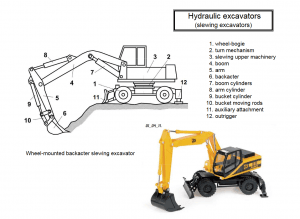

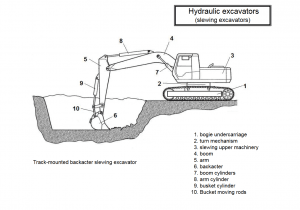

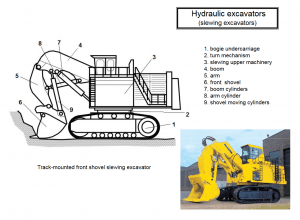

2. Hydraulic excavators (slewing excavators)



A hydraulic excavator (digger) is a large vehicle that is designed for excavation and demolition purposes. Hydraulic excavators consist of a chassis, boom, and bucket, and move via tracks or wheels. They range in size and function, an example of which is the similar but smaller “mini excavator.” All versions are generally designed for the same purposes. Hydraulic excavators weigh between 3,000 and 2 million pounds and their speed ranges between 19 HP and 4,500 HP.



hydraulic excavators 300x219 - Construction Equipment Earthwork & Soil Compaction



hydraulic excavators 2 300x210 - Construction Equipment Earthwork & Soil Compaction

hydraulic excavators 3 300x220 - Construction Equipment Earthwork & Soil Compaction

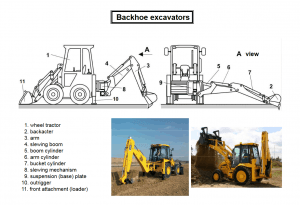

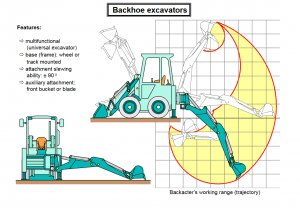

3.Backhoe excavators

Backhoe is another widely used equipment which is suitable for multiple purposes. The name itself telling that the hoe arrangement is provided on the back side of vehicle while loading bucket is provided in the front.

This is well useful for excavating trenches below the machine level and using front bucket loading, unloading and lifting of materials can be done.



Backhoe excavators 300x205 - Construction Equipment Earthwork & Soil Compaction

Backhoe excavators 2 300x208 - Construction Equipment Earthwork & Soil Compaction

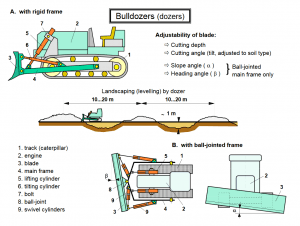

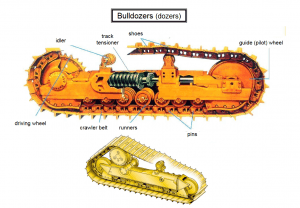

4. Bulldozers (dozers)



A bulldozer is a crawler (continuous tracked tractor) equipped with a substantial metal plate (known as a blade) used to push large quantities of soil, sand, rubble, or other such material during construction or conversion work and typically equipped at the rear with a claw-like device (known as a ripper) to loosen densely compacted materials.

Bulldozers can be found on a wide range of sites, mines and quarries, military bases, heavy industry factories, engineering projects and farms.



bulldozers 300x226 - Construction Equipment Earthwork & Soil Compaction



bulldozers 1 300x208 - Construction Equipment Earthwork & Soil Compaction

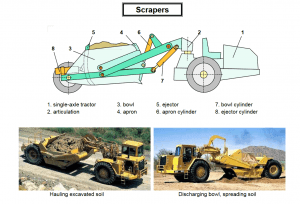

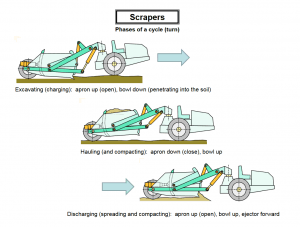

5. Scrapers

Scraper, in engineering, machine for moving earth over short distances (up to about two miles) over relatively smooth areas. Either self-propelled or towed, it consists of a wagon with a gate having a bladed bottom. The blade scrapes up earth as the wagon pushes forward and forces the excavated material into the wagon. When the wagon is filled, the gate is closed, and the material is carried to the place of disposal. The scraper is the dominant tool in highway construction.



scrapers 300x204 - Construction Equipment Earthwork & Soil Compaction



scrapers 1 300x227 - Construction Equipment Earthwork & Soil Compaction



scrapers 2 300x218 - Construction Equipment Earthwork & Soil Compaction

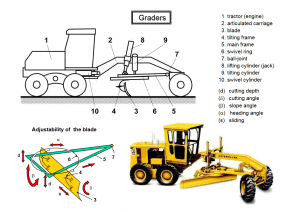

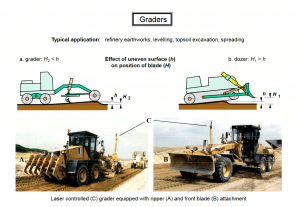

6. Graders



Grader, in excavation, precision finishing vehicle for final shaping of surfaces on which pavement will be placed. Between its front and rear wheels a grader carries a broad mechanically or hydraulically controlled blade that can be extended from either side. Either end of the blade can be raised or lowered. Graders may be used for shallow ditching, but most models are used to assist other earth-moving equipment and to smooth roads, fills, and cuts.



graders 300x212 - Construction Equipment Earthwork & Soil Compaction



graders 1 300x207 - Construction Equipment Earthwork & Soil Compaction

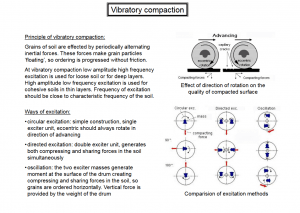

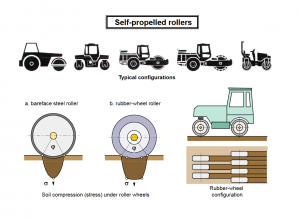

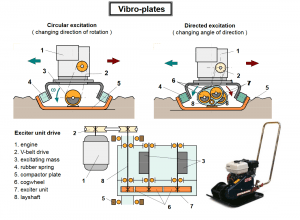

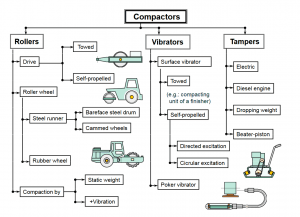

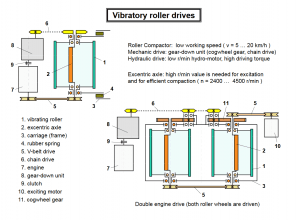

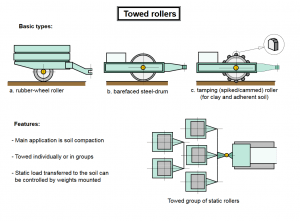

7. Compactors



A compactor is a machine or mechanism used to reduce the size of material such as waste material or bio mass through compaction. A trash compactor is often used by a home or business to reduce the volume of trash it produces.

Compactors 300x217 - Construction Equipment Earthwork & Soil Compaction



Compactors 1 300x221 - Construction Equipment Earthwork & Soil Compaction



Compactors 2 300x219 - Construction Equipment Earthwork & Soil Compaction

Compactors 3 300x213 - Construction Equipment Earthwork & Soil Compaction



Compactors 4 300x220 - Construction Equipment Earthwork & Soil Compaction



Compactors 5 300x214 - Construction Equipment Earthwork & Soil Compaction



Compactors 6 300x220 - Construction Equipment Earthwork & Soil Compaction
